PUTF208 Multi Channel Ultrasonic Flow Meter

Features:

● Online Installing, Unnecessary Pipe Cutting Or Processing Interruption.
● 4.3-inch TFT Color Display Screen, Display Velocity, Flow Rate, Volume And Meter Status.
● Digital Timing Technology, Minimum Resolution Is 45ps, Sampling Frequency Is 2hz.
● Single And Dual Channel Can Be Switched Arbitrarily. Appropriate Measurement.
● Method Can Be Selected By Menu.
● Screen Display Adopts Multi-language Design And Languages Suitable For Different Countries.
● High Measuring Accuracy Suitable For Large Pipe Diameters And Complex Flow Regimes.
● Can Measure Carbon Steel, Cement, Cast Iron, Plastic Pipes.
● IP68 Sensors Can Work Underwater For A Long Time.

Get More Information

Summary

Specification

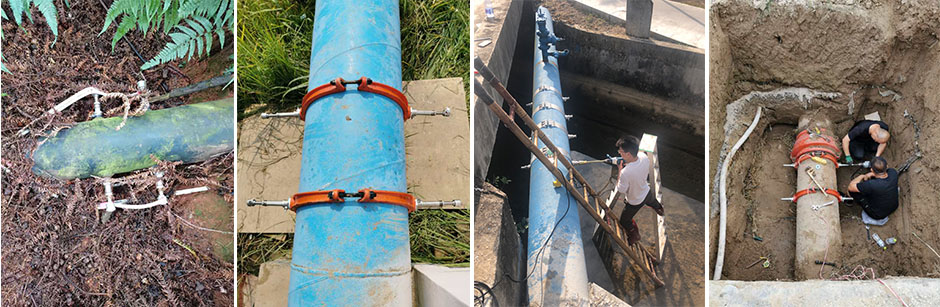

On-site Pictures

Application

The transit-time ultrasonic flow meter PUTF208 working with principle of transit-time. The transducer is insertion type. Insertion installation effectively solves the problem that the internal wall of the pipe-line is scaling, the pipeline is old, and the pipeline non-sound-conducting materials cannot be effectively measured. The insertion transducer comes with a ball valve, and the installation and maintenance do not need to cut off the flow, break the pipe, which is convenient and fast. For special pipes which the material cannot be welded, the transducer can be mounted by installing a holding hoop. Heat and cooling metering optional.Quick installation, simple operation, widely used in production monitoring, water balance test, heat network balance test, energy-saving monitoring and other occasions.

Previous: PUTF206 Battery Powered Multi Channel Ultrasonic Flow Meter

Next: PUDF305 Portable Doppler Ultrasonic Flow Meter

Transmitter

Measuring Principle	Transit-time
Velocity	0.01 – 12 m/s, Bi-directional Measurement
Resolution	0.25mm/s
Repeatability	0.1%
Accuracy	±1.0% R
Response Time	0.5s
Sensitivity	0.003m/s
Damping	0-99s(settable by user )
Suitable Fluid	Clean or tiny amounts of solids, air bubbles liquid, Turbidity <10000 ppm
Power Supply	AC: (85-265)VDC: 24V/500mA
Installation	Portable
Protection Class	IP66
Operating Temperature	-40℃ ~ +75℃
Enclosure Material	Fiberglass
Display	4.3-inch TFT color display screen
Measuring Unit	meter, ft, m³, liter，ft³, gallon, barrel etc.
Communication Output	4~20mA, OCT, Relay, RS485 (Modbus-RUT), Data Logger, GPRS
Energy Unit	Unit: GJ, Opt: KWh
Security	Keypad Lockout, System Lockout
Size	244196114mm
Weight	3kg

Transducer

Protection Class	IP68
Fluid Temperature	Std. transducer: -40℃~+85℃ High temperature transducer: -40℃~+160℃
Pipe Size	65mm-6000mm
Transducer Size	Insertion type: Standard transducer, Extended transducer
Transducer Material	Insertion type: Stainless steel Clamp on type: Std. Aluminum alloy, High Temp.(PEEK)
Temperature Sensor	PT1000
Cable Length	Std. 10m (customized)
