PUTF203 Handheld Ultrasonic Flow Meter

Features:

● Small Size, Easy To Carry And Simple Installation.
● Built-in Chargeable Lithium Battery Can Continuously Work 14 Hours.
● 4 Lines Display Velocity, Flow Rate, Volume And Meter Status.
● Clamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption.
● Fluid Temperature Range -40℃~260℃.
● Built-in Data Storage Is Optional.
● Suitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers.
● Bi-directional Measurement, Widely Measuring Range.

Get More Information

Summary

Specification

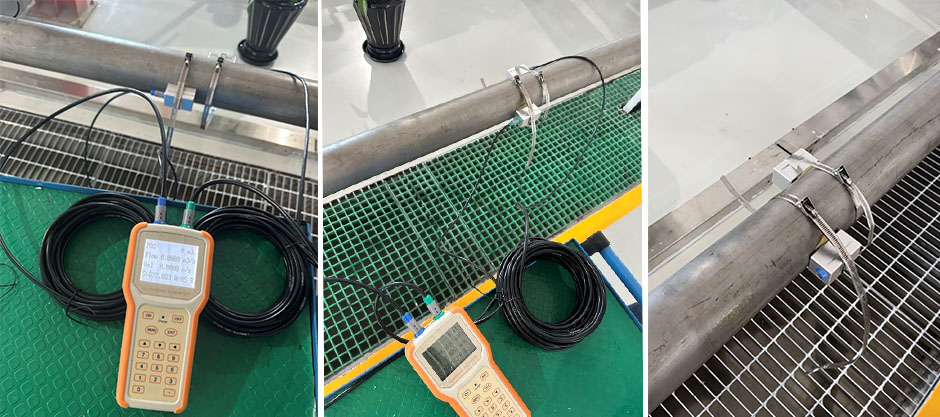

On-site Pictures

Application

PUTF203 handheld transit-time ultrasonic flow meter utilizes transit-time principle. The transducer is mounted outside surface of the pipe without requirements of flow stop or pipe cutting. It's very simple, convenient for installation, calibration and maintenance. Different sizes of transducers satisfy different measuring demand. Plus, select thermal energy measuring function to achieve completely energy analysis. As small size, easy to carry, simple installation, widely applied in mobile measuring, calibration, data comparison fields etc.

Our products are essential tools for professionals in the mobile measurement and calibration industry. Its versatility, durability, and user-friendly interface make it a reliable and efficient tool for precise measurement and data analysis. By using this product, you can improve accuracy and productivity, and take data analysis to a new level.

Previous: PUTF205 Portable Ultrasonic Flow Meter

Next: PUTF201 Clamp-on Ultrasonic Flow Meter

Transmitter

Measuring Principle	Transit-time
Velocity	0.01 – 12 m/s, Bi-directional Measurement
Resolution	0.25mm/s
Repeatability	0.1%
Accuracy	±1.0% R
Response Time	0.5s
Sensitivity	0.003m/s
Damping	0-99s(settable by user )
Suitable Fluid	Clean or tiny amounts of solids, air bubbles liquid, Turbidity <10000 ppm
Power Supply	AC: 85-265V, built-in chargeable lithium battery can continuously work 14 hours
Protection Class	IP65
Operating Temperature	-40℃ ~ 75℃
Enclosure Material	ABS
Display	4X8 Chinese Or 4X16 English, Backlit
Measuring Unit	meter, ft, m³, liter, ft³, gallon, barrel etc.
Communication Output	Data Logger
Security	Keypad Lockout, System Lockout
Size	21210036mm
Weight	0.5kg

Transducer

Protection Class	IP67
Fluid Temperature	Std. transducer: -40℃~85℃(Max.120℃) High Temp: -40℃~260℃
Pipe Size	20mm~6000mm
Transducer Size	S 20mm~40mm M 50mm~1000mm L 1000mm~6000mm
Transducer Material	Std. Aluminum alloy, High Temp.(PEEK)
Cable Length	Std. 5m (customized)
