Panda WQS Punching Sewage Pump

Features:

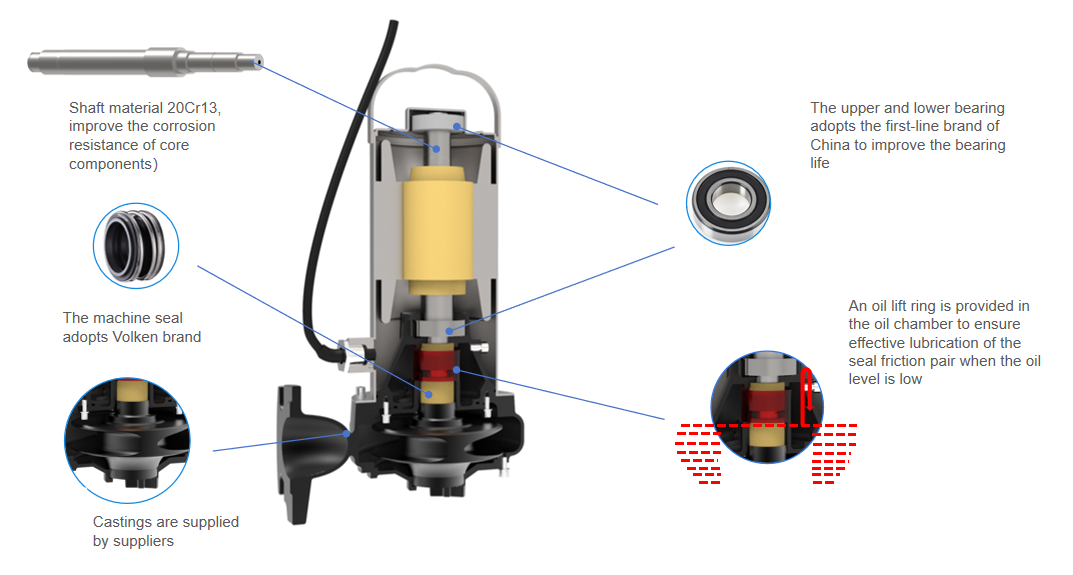

Product upgrade: stainless steel motor housing and shaft, bearing, machine seal upgrade;

Cost reduction: Through structural improvement, process improvement, reduce production costs;

Energy-saving improvement: benchmarking industry advanced, improve product performance, the same performance requires lower energy consumption;

Function upgrade: with seal protection function to ensure normal operation when the oil level is low;

Low carbon environmental protection: reduce the use of high energy consumption materials and reduce carbon emissions.

Get More Information

Product Introduction

Product Parameter

Application Scenario

WQS series stamping sewage pump is our company based on similar foreign advanced technology, after many successful development of environmental protection products, with innovation, novelty and so on. Adopt large runner or double blade impeller structure, the dirt through the ability is strong, not easy to plug; The motor part adopts stamping parts to improve the heat dissipation efficiency of the motor and ensure the safe operation of the motor; Automatic coupling and mobile installation can be adopted, making installation and maintenance faster.

Previous: Panda High-Precision Piston Water Meter Calibration Test Bench

Next: SX double-suction pump

Flow range ：5～140m³/h

Range of head：5～45m

Power of motor：0.75kW～7.5kW

Diameter of outlet：DN50～DN100

Rated speed: 2900r/min

Medium temperature:：0C～40℃

Medium PH range:4～10

Motor protection class:IP68

Motor insulation class: F

Medium density:≤1.05*103kg/m³

Medium fiber:The fiber length in the medium shall not exceed 50% of the discharge diameter of the pump

Direction of rotation:From the motor direction, it rotates clockwise

Installation depth:The depth of submersion is not more than 10 meters

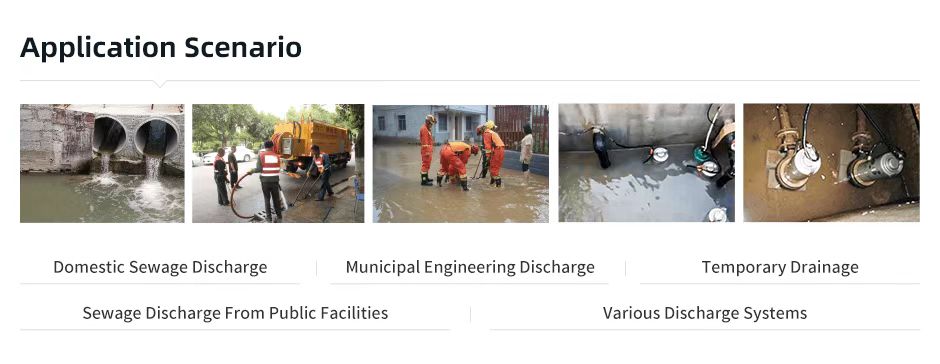

It is suitable for domestic sewage, municipal engineering sewage discharge, temporary drainage, sewage discharge of public facilities, and various small discharge systems.
