Bulk Ultrasonic Water Meter DN50~300

Features:

● With Rectifier Function, Low Installation of Requirement of Straight Pipe.
● Suitable For Mass Flow And Tiny Flow Measurement.
● Configured With Remote Data Collector, Remotely Connect To Smart Metering Platform.
● IP68 Protection Class; Electrophoresis With Anti-Scaling.
● Low Consumption Design, Can Continuously Work For 10 Years.
● Bi-directional Measuring Forward And Reverse Flow.
● Data Storage Function Can Save 10 Years’ Data Including Day, Month and Year.
● Stainless Steel 304 Material For Drinking Water.

Get More Information

Summary

Specification

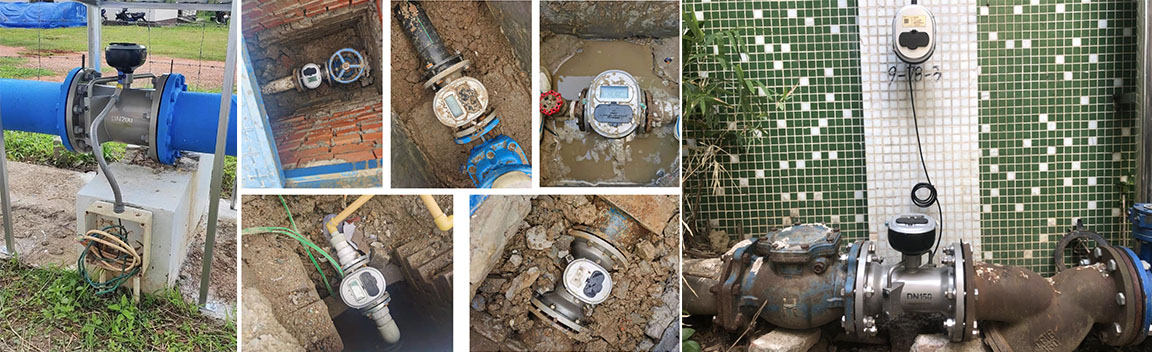

On-site Pictures

Application

Bulk Ultrasonic Water Meter DN50~300

Reliable and accurate water measurement is crucial for various systems and industries. Unfortunately, the flowmeter industry faces some challenges, including high initial flow rates, inconvenient small flow measurement, inaccurate measurement due to scaling, and unstable or complex connections for remote transmission of flow and pressure.

Panda has developed the latest generation of products: PWM volume intelligent ultrasonic water meter, which can integrate pressure function; High regulation ratio can consider the flow measurement of two types of ultrasonic water meters on the market, named full bore and reduced bore 304 stainless steel is used for one time stretching, colorless electrophoresis to prevent scaling This water meter has been approved by the national health inspection and quarantine department and meets the hydrogene standards for drinking water The protection level is IP68

If you are looking for a solution without common problems with traditional flow meters, PWM Bulk intelligent ultrasonic water meters are your best choice. This product has integrated pressure function, excellent accuracy, and excellent remote transmission capability, making it an excellent choice for your next project

Previous: Ultrasonic Water Meter DN32-DN40

Next: Ultrasonic Water Meter DN350-DN600

Transmitter

Max. Working Pressure	1.6Mpa
Temperature Class	T30, T50, T70, T90（Default T30）
Accuracy Class	ISO 4064, Accuracy class 2
Body Material	Stainless Steel SS304（Opt. SS316L)
Battery Life	10 years (Consumption ≤0.5mW)
Protection Class	IP68
Environmental Temperature	-40℃~70℃, ≤100%RH
Pressure Loss	ΔP10, ΔP16, ΔP25（based on different dynamic flow
Climatic And Mechanical Environment	Class O
Electromagnetic Class	E2
Communication	RS485(baud rate is adjustable), Pulse, Opt. NB-IoT, GPRS
Display	9 digits LCD display, can display cumulative flow, instantaneous flow, flow, pressure, temperature, error alarm, flow direction etc. at the same time
RS485	Default baud rate 9600bps (opt. 2400bps, 4800bps), Modbus-RTU
Connection	Flanges according to EN1092-1 (others customized)
Flow Profile Sensitivity Class	A Full Bore (U5/D3) B 20% Reduced Bore (U3/D0) C Reduced Bore (U0/D0)
Data Storage	Store the data, including day, month and year for 10 years. The data can be permanently saved even powered off
Frequency	1-4 times/second
